5 ( 60 ) A 50Hz Single Phase 2 Wire Electrical Multimeters with Carrier Communication Module

Brand Name : Radarking
Model Number : DDS155
Certification : IEC 62053-21:2003
Place of Origin : China
MOQ : 1 Set
Price : Negotiation
Payment Terms : T/T, L/C, Western Union, MoneyGram
Supply Ability : 5000000 pcs per year
Delivery Time : 5-35 Days
Packaging Details : Standard Export Package
Voltage : 220V/230V
Current : 1.5(6)A, 5(10)A, 10(40)A, 20(80)A, etc.
Frequency : 50/60Hz
Accuracy Class : 2.0, 1.0, 0.5S; 2.0(Reactive Power)
Pulse Constant : 6400, 3200, 2400, 1600 imp/kWh, etc
Power Consumption : ≤ 0.8W/phase
Clock Accuracy : ≤ 0.5s/Day (Reference Temperature 23℃)
Data Storage Period : ≥ 10 years
Contact Now

5 ( 60 ) A 50Hz Single Phase 2 Wire Electrical Multimeters with Carrier Communication Module

Description:


Single Phase 2 Wire Multimeter is a high technology product. It can measuring the positive active power and reverse active power with IEC 62053-21:2003 and DL/T645-1997/2007. The single phase electricity meter has intelligent and reliable design, such as good power source and electromagnetism compatible design, which are suitable to the strong electromagnetism disturbance and big occasion of power source fluctuation.


Specification:

VoltageRated220V/230V
Range0.34Un~1.15Un
Limit0.34Un~1.2Un
CurrentRated10A
Max60A
Frequency50Hz
Active EnergyClass 1.0
Staring Current0.4%Ib
Active Impulse1600
Power LossVoltage Circuit≤1.5W,10VA
Current Circuit≤1VA
Working Temperature-25ºC~+60ºC
Limit Working Temperature-40ºC~+80ºC
Humidity≤95%
DisplayTypeLCD
Digit6+2
Display Page5(with electric);1(without electric)
Dimension
Weight

Features:

1. Product's Type: Register (5+1), LCD (5+1 or 6+1), LED (5+1)
2. Electric Power Measurement: Positive active power, reverse active power and power in A, B, C phase which can be measured.
3. Intelligent Design: Imported single-chip which controlled by microcomputer, full digital metering, with advantages of high accuracy, good linearity, wide range, low consumption and prevent from electricity stolen.
4. Reliable Design: Perfect power source and electromagnetism compatible design, which are suitable to the strong electromagnetism disturbance and big occasion of power source fluctuation.
5. Cover to Meter: Fully sealed dustproof and waterproof design, material of cover has excellent flame retardant and anti-corrosion, anti-aging properties.
6. On-Off Manner: Build in or external switch can be optional.
7. Communication Mode: Infrared, RS485 interface or carrier communication module(Optional).


Safety precautions:

- Use only isolated tools.
- Do not connect the meter to a 3 phase - 415V AC - network.
- Place the meter only in dry surroundings.
- Make sure the used wires are suitable for the max current the meter can measure.
- Make sure the AC wires are installed correctly before activating the current/voltage.
- Do not touch the meter connecting clamps directly with your bare hands, with metal, blank wire or other material as you will have the chance of an electricity shock and a possible chance for health damage.
- Make sure the protection cover is placed after installation and has been sealed.
- Installation, maintenance and repair should only be done by a certified electrician.
- Never break the seals or open the front cover as this might influence the functionality of the meter.
- Do not through, drop, kick or other physical violence to the meter as there are high precision components inside that will break or make the meter measure inaccurate.
- Do not mount the meter in area's with harm gas, dust, mildew or insects or on unstable surfaces.


Product Tags:

Single Phase Watt Hour Meter



Single Phase Energy Meter


China Customized Inflatable Bumper Ball Game Bubble Adult Grass CE supplier

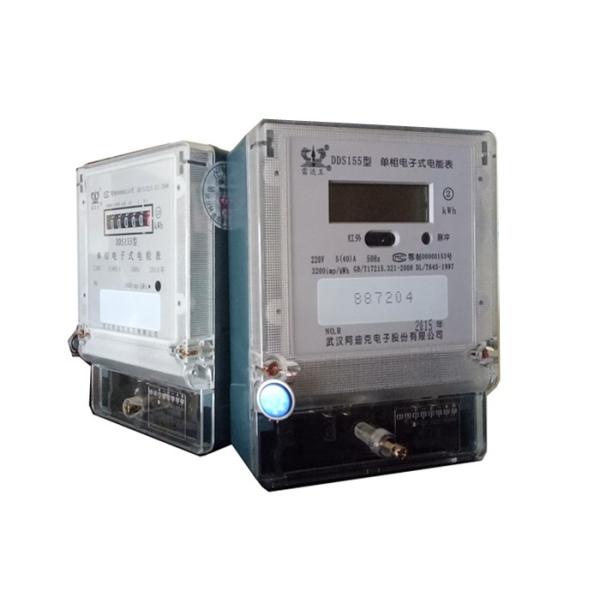

5 ( 60 ) A 50Hz Single Phase 2 Wire Electrical Multimeters with Carrier Communication Module Images
